Description

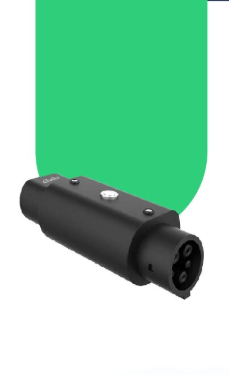

Type 2 to Type 1 Charging Adapter – 32A | Smart & Safe EV Charging Accessory

Upgrade your EV charging flexibility with this Type 2 to Type 1 Adapter (32A) — perfect for connecting Type 2 public or home charging stations to Type 1 electric vehicles. Designed for durability, efficiency, and safety, this adapter ensures a smooth and reliable charging experience across all environments in the UAE.

The adapter features high-grade thermoplastic UL94 V-0 flame-retardant material, copper alloy terminals with silver plating, and excellent performance under extreme temperatures from -30°C to +50°C. With contact resistance as low as 0.5mΩ, insulation resistance above 1000MΩ, and over 10,000 no-load plug-in/out cycles, it is engineered for long-term, heavy-duty use.

Whether you drive a Type 1 EV or offer public charging services, this adapter ensures full compatibility, high safety standards, and efficient charging — backed by CE & CB certification.

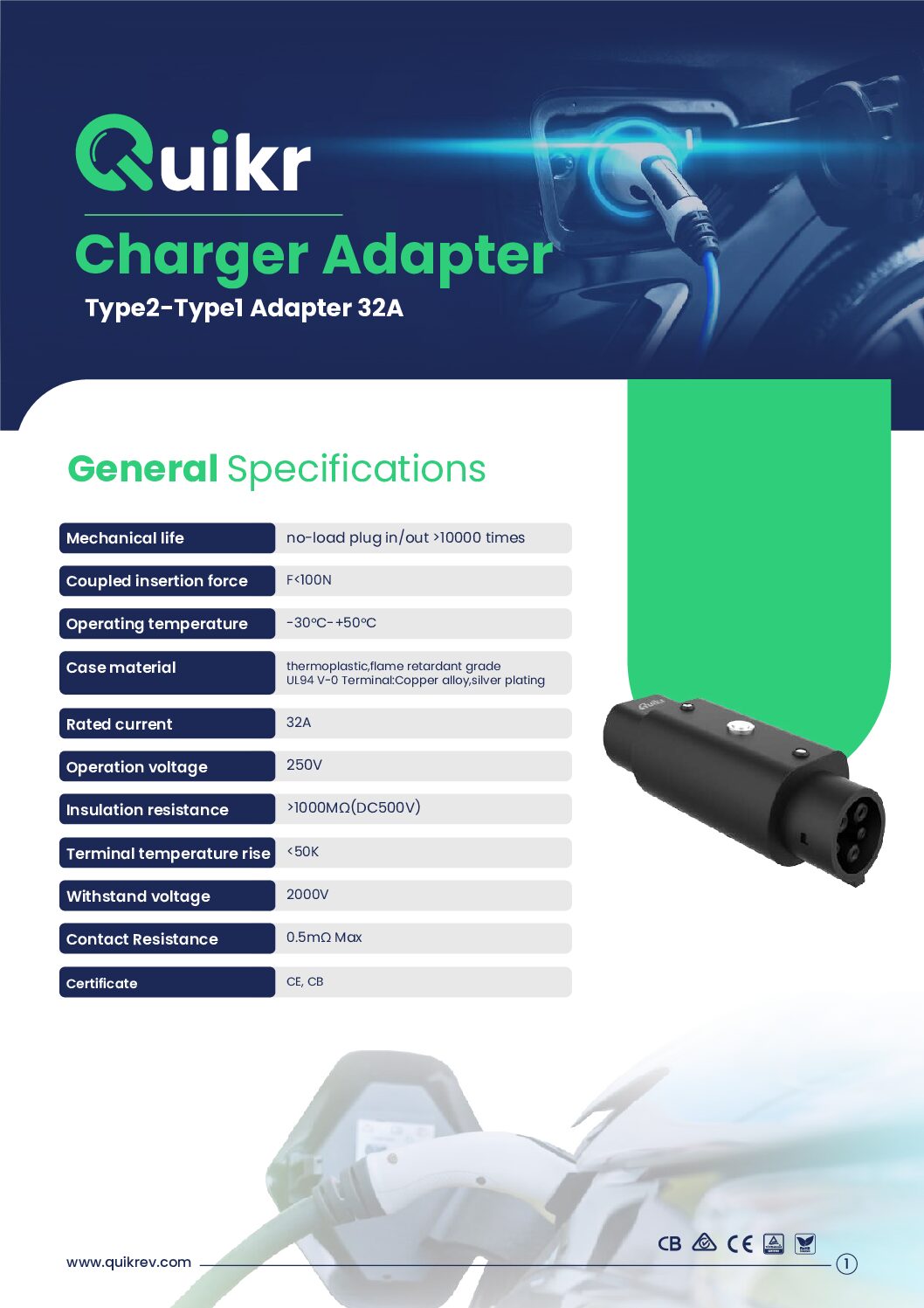

Technical Specifications

• Mechanical Life: >10,000 no-load plug-in/out cycles

• Coupled Insertion Force: <100N

• Operating Temperature: -30°C to +50°C

• Case Material: Thermoplastic UL94 V-0 (flame retardant)

• Terminals: Copper alloy with silver plating

• Rated Current: 32A

• Operation Voltage: 250V

• Insulation Resistance: >1000MΩ (DC500V)

• Terminal Temperature Rise: <50K

• Withstand Voltage: 2000V

• Contact Resistance: Max 0.5mΩ

• Certification: CE, CB
